impactx::elements::mixin::Alignment Struct Reference

#include <alignment.H>

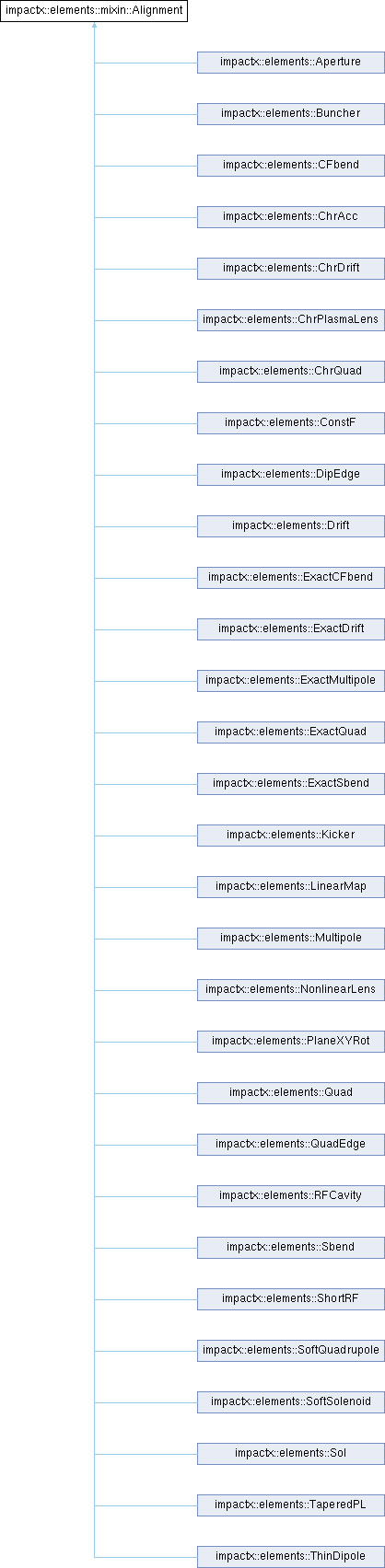

Inheritance diagram for impactx::elements::mixin::Alignment:

Public Member Functions
	Alignment (amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree)
	Alignment ()=default
	Alignment (Alignment const &)=default
Alignment &	operator= (Alignment const &)=default
	Alignment (Alignment &&)=default
Alignment &	operator= (Alignment &&rhs)=default
	~Alignment ()=default
void	compute_constants (RefPart const &refpart)
template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_in (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const
template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_out (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dx () const
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dy () const
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	rotation () const

Public Attributes
amrex::ParticleReal	m_dx = 0
amrex::ParticleReal	m_dy = 0
	horizontal translation error [m]
amrex::ParticleReal	m_rotation = 0
	vertical translation error [m]

Static Public Attributes
static constexpr amrex::ParticleReal	degree2rad = ablastr::constant::math::pi / 180.0

Private Attributes
amrex::ParticleReal	m_sin_rotation
	rotation error in the transverse plane [rad]
amrex::ParticleReal	m_cos_rotation
	std::sin(m_rotation)

Detailed Description

This is a helper class for lattice elements with horizontal/vertical alignment errors

Constructor & Destructor Documentation

Alignment() [1/4]

impactx::elements::mixin::Alignment::Alignment ( amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree )

inline

A finite-length element

Parameters

dx	horizontal translation error in m
dy	vertical translation error in m
rotation_degree	rotation error in the transverse plane [degrees]

Alignment() [2/4]

impactx::elements::mixin::Alignment::Alignment ( )

default

Alignment() [3/4]

impactx::elements::mixin::Alignment::Alignment ( Alignment const & )

default

Alignment() [4/4]

impactx::elements::mixin::Alignment::Alignment ( Alignment && )

default

~Alignment()

impactx::elements::mixin::Alignment::~Alignment ( )

default

Member Function Documentation

compute_constants()

void impactx::elements::mixin::Alignment::compute_constants ( RefPart const & refpart )

inline

Compute and cache the constants for the push.

In particular, used to pre-compute and cache variables that are independent of the individually tracked particle.

Parameters

refpart

reference particle

dx()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::mixin::Alignment::dx ( ) const

inline

Horizontal translation error

Returns

horizontal translation error in m

dy()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::mixin::Alignment::dy ( ) const

inline

Vertical translation error

Returns

vertical translation error in m

operator=() [1/2]

Alignment & impactx::elements::mixin::Alignment::operator= ( Alignment && rhs )

default

operator=() [2/2]

Alignment & impactx::elements::mixin::Alignment::operator= ( Alignment const & )

default

rotation()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::mixin::Alignment::rotation ( ) const

inline

rotation error in the transverse plane

Returns

rotation error in the transverse plane [degrees]

shift_in()

template<typename T_Real>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::mixin::Alignment::shift_in ( T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py ) const

inline

Shift the particle into the alignment error frame

The

See also

compute_constants method must be called before pushing particles through this operator.

Parameters

[in,out]	x	horizontal position relative to reference particle
[in,out]	y	vertical position relative to reference particle
[in,out]	px	horizontal momentum relative to reference particle
[in,out]	py	vertical momentum relative to reference particle

shift_out()

template<typename T_Real>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::mixin::Alignment::shift_out ( T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py ) const

inline

Shift the particle out of the alignment error frame

The

See also

compute_constants method must be called before pushing particles through this operator.

Parameters

[in,out]	x	horizontal position relative to reference particle
[in,out]	y	vertical position relative to reference particle
[in,out]	px	horizontal momentum relative to reference particle
[in,out]	py	vertical momentum relative to reference particle

Member Data Documentation

degree2rad

amrex::ParticleReal impactx::elements::mixin::Alignment::degree2rad = ablastr::constant::math::pi / 180.0

staticconstexpr

m_cos_rotation

amrex::ParticleReal impactx::elements::mixin::Alignment::m_cos_rotation

private

std::sin(m_rotation)

m_dx

amrex::ParticleReal impactx::elements::mixin::Alignment::m_dx = 0

m_dy

amrex::ParticleReal impactx::elements::mixin::Alignment::m_dy = 0

horizontal translation error [m]

m_rotation

amrex::ParticleReal impactx::elements::mixin::Alignment::m_rotation = 0

vertical translation error [m]

m_sin_rotation

amrex::ParticleReal impactx::elements::mixin::Alignment::m_sin_rotation

private

rotation error in the transverse plane [rad]

---

The documentation for this struct was generated from the following file:

• /home/docs/checkouts/readthedocs.org/user_builds/impactx/checkouts/1182/src/elements/mixin/alignment.H
