#include <Aperture.H>

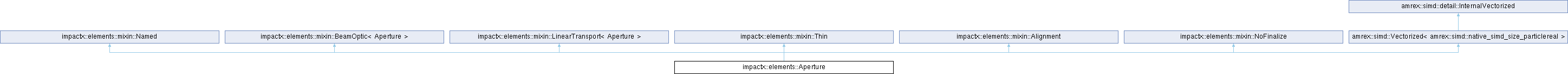

Inheritance diagram for impactx::elements::Aperture:

Public Types
enum	Shape { rectangular , elliptical }

enum	Action { transmit , absorb }

using	PType = ImpactXParticleContainer::ParticleType

Public Member Functions
	Aperture (amrex::ParticleReal aperture_x, amrex::ParticleReal aperture_y, amrex::ParticleReal repeat_x, amrex::ParticleReal repeat_y, bool shift_odd_x, Shape shape, Action action, amrex::ParticleReal dx=0, amrex::ParticleReal dy=0, amrex::ParticleReal rotation_degree=0, std::optional< std::string > name=std::nullopt)

void	compute_constants (RefPart const &refpart)

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT t, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py, T_Real &AMREX_RESTRICT pt, T_IdCpu &AMREX_RESTRICT idcpu, RefPart const &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6	transport_map (RefPart const &AMREX_RESTRICT refpart) const

Public Member Functions inherited from impactx::elements::mixin::Named
AMREX_GPU_HOST void	set_name (std::string const &new_name)

AMREX_GPU_HOST	Named (std::optional< std::string > name)

AMREX_GPU_HOST_DEVICE	~Named ()

AMREX_GPU_HOST	Named (Named const &other)

AMREX_GPU_HOST Named &	operator= (Named const &other)

AMREX_GPU_HOST_DEVICE	Named (Named &&other) noexcept

AMREX_GPU_HOST_DEVICE Named &	operator= (Named &&other) noexcept

AMREX_FORCE_INLINE std::string	name () const

AMREX_FORCE_INLINE bool	has_name () const

Public Member Functions inherited from impactx::elements::mixin::BeamOptic< Aperture >
void	operator() (ImpactXParticleContainer &pc, int step, int period)

void	operator() (ImpactXParticleContainer::iterator &pti, RefPart &AMREX_RESTRICT ref_part)

Public Member Functions inherited from impactx::elements::mixin::LinearTransport< Aperture >
	LinearTransport ()=default

	LinearTransport (LinearTransport const &)=default

	LinearTransport (LinearTransport &&)=default

LinearTransport &	operator= (LinearTransport const &)=default

LinearTransport &	operator= (LinearTransport &&rhs)=default

	~LinearTransport ()=default

AMREX_GPU_HOST AMREX_FORCE_INLINE void	operator() (Map6x6 &AMREX_RESTRICT cm, RefPart const &AMREX_RESTRICT ref) const

Public Member Functions inherited from impactx::elements::mixin::Thin
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (RefPart &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	nslice () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	ds () const

Public Member Functions inherited from impactx::elements::mixin::Alignment
	Alignment (amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree)

	Alignment ()=default

	Alignment (Alignment const &)=default

Alignment &	operator= (Alignment const &)=default

	Alignment (Alignment &&)=default

Alignment &	operator= (Alignment &&rhs)=default

	~Alignment ()=default

void	compute_constants (RefPart const &refpart)

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_in (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_out (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dx () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dy () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	rotation () const

Public Member Functions inherited from impactx::elements::mixin::NoFinalize
void	finalize ()

Static Public Member Functions
static std::string	shape_name (Shape const &shape)

static std::string	action_name (Action const &action)

Public Attributes
Shape	m_shape

Action	m_action
	aperture type (rectangular, elliptical)

amrex::ParticleReal	m_inv_aperture_x
	action type (transmit, absorb)

amrex::ParticleReal	m_inv_aperture_y
	maximum horizontal coordinate

amrex::ParticleReal	m_repeat_x
	maximum vertical coordinate

amrex::ParticleReal	m_repeat_y
	horizontal period for repeated masking

bool	m_shift_odd_x
	vertical period for repeated masking

Public Attributes inherited from impactx::elements::mixin::Alignment
amrex::ParticleReal	m_dx = 0

amrex::ParticleReal	m_dy = 0
	horizontal translation error [m]

amrex::ParticleReal	m_rotation = 0
	vertical translation error [m]

Static Public Attributes
static constexpr auto	type = "Aperture"

Static Public Attributes inherited from impactx::elements::mixin::Alignment
static constexpr amrex::ParticleReal	degree2rad = ablastr::constant::math::pi / 180.0

Static Public Attributes inherited from amrex::simd::Vectorized< amrex::simd::native_simd_size_particlereal >
static constexpr int	simd_width

Member Typedef Documentation

◆ PType

using impactx::elements::Aperture::PType = ImpactXParticleContainer::ParticleType

Member Enumeration Documentation

◆ Action

enum impactx::elements::Aperture::Action

Enumerator
transmit
absorb

◆ Shape

enum impactx::elements::Aperture::Shape

Enumerator
rectangular
elliptical

Constructor & Destructor Documentation

◆ Aperture()

impactx::elements::Aperture::Aperture	(	amrex::ParticleReal	aperture_x,
		amrex::ParticleReal	aperture_y,
		amrex::ParticleReal	repeat_x,
		amrex::ParticleReal	repeat_y,
		bool	shift_odd_x,
		Shape	shape,
		Action	action,
		amrex::ParticleReal	dx = 0,
		amrex::ParticleReal	dy = 0,
		amrex::ParticleReal	rotation_degree = 0,
		std::optional< std::string >	name = std::nullopt )

inline

A thin collimator element that applies a transverse aperture boundary. Particles outside the boundary are considered lost.

Parameters

shape	aperture shape
action	specify action of domain (transmit/absorb)
aperture_x	horizontal half-aperture (m)
aperture_y	vertical half-aperture (m)
repeat_x	horizontal period for repeated masking, optional (m)
repeat_y	vertical period for repeated masking, optional (m)
shift_odd_x	for hexagonal/triangular mask patterns: horizontal shift of every 2nd (odd) vertical period by repeat_x / 2. Use alignment offsets dx,dy to move whole mask as needed.
dx	horizontal translation error in m
dy	vertical translation error in m
rotation_degree	rotation error in the transverse plane [degrees]
name	a user defined and not necessarily unique name of the element

Member Function Documentation

◆ action_name()

std::string impactx::elements::Aperture::action_name ( Action const & action )

static

◆ compute_constants()

void impactx::elements::Aperture::compute_constants ( RefPart const & refpart )

inline

Compute and cache the constants for the push.

In particular, used to pre-compute and cache variables that are independent of the individually tracked particle.

Parameters

refpart reference particle (unused)

◆ operator()()

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::Aperture::operator()	(	T_Real &AMREX_RESTRICT	x,
		T_Real &AMREX_RESTRICT	y,
		T_Real &AMREX_RESTRICT	t,
		T_Real &AMREX_RESTRICT	px,
		T_Real &AMREX_RESTRICT	py,
		T_Real &AMREX_RESTRICT	pt,
		T_IdCpu &AMREX_RESTRICT	idcpu,
		RefPart const &AMREX_RESTRICT	refpart ) const

inline

This is an aperture functor, so that a variable of this type can be used like an aperture function.

Parameters

x	particle position in x
y	particle position in y
t	particle position in t (unused)
px	particle momentum in x
py	particle momentum in y
pt	particle momentum in t (unused)
idcpu	particle global index
refpart	reference particle (unused)

◆ shape_name()

std::string impactx::elements::Aperture::shape_name ( Shape const & shape )

static

◆ transport_map()

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6 impactx::elements::Aperture::transport_map ( RefPart const &AMREX_RESTRICT refpart ) const

inline

This function returns the linear transport map.

Parameters

[in] refpart reference particle

Returns: 6x6 transport matrix

Member Data Documentation

◆ m_action

Action impactx::elements::Aperture::m_action

aperture type (rectangular, elliptical)

◆ m_inv_aperture_x

amrex::ParticleReal impactx::elements::Aperture::m_inv_aperture_x

action type (transmit, absorb)

◆ m_inv_aperture_y

amrex::ParticleReal impactx::elements::Aperture::m_inv_aperture_y

maximum horizontal coordinate

◆ m_repeat_x

amrex::ParticleReal impactx::elements::Aperture::m_repeat_x

maximum vertical coordinate

◆ m_repeat_y

amrex::ParticleReal impactx::elements::Aperture::m_repeat_y

horizontal period for repeated masking

◆ m_shape

Shape impactx::elements::Aperture::m_shape

◆ m_shift_odd_x

bool impactx::elements::Aperture::m_shift_odd_x

vertical period for repeated masking

◆ type

auto impactx::elements::Aperture::type = "Aperture"

staticconstexpr
