#include <Drift.H>

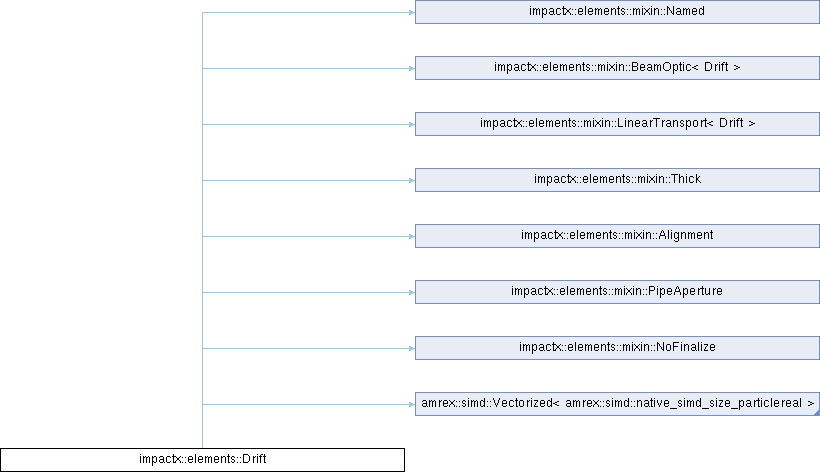

Inheritance diagram for impactx::elements::Drift:

Public Types
using	PType = ImpactXParticleContainer::ParticleType

Public Member Functions
	Drift (amrex::ParticleReal ds, amrex::ParticleReal dx=0, amrex::ParticleReal dy=0, amrex::ParticleReal rotation_degree=0, amrex::ParticleReal aperture_x=0, amrex::ParticleReal aperture_y=0, int nslice=1, std::optional< std::string > name=std::nullopt)

void	compute_constants (RefPart const &refpart)

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT t, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py, T_Real &AMREX_RESTRICT pt, T_IdCpu &AMREX_RESTRICT idcpu, RefPart const &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (RefPart &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6	transport_map (RefPart const &AMREX_RESTRICT refpart) const

Public Member Functions inherited from impactx::elements::mixin::Named
AMREX_GPU_HOST void	set_name (std::string const &new_name)

AMREX_GPU_HOST	Named (std::optional< std::string > name)

AMREX_GPU_HOST_DEVICE	~Named ()

AMREX_GPU_HOST	Named (Named const &other)

AMREX_GPU_HOST Named &	operator= (Named const &other)

AMREX_GPU_HOST_DEVICE	Named (Named &&other) noexcept

AMREX_GPU_HOST_DEVICE Named &	operator= (Named &&other) noexcept

AMREX_FORCE_INLINE std::string	name () const

AMREX_FORCE_INLINE bool	has_name () const

Public Member Functions inherited from impactx::elements::mixin::BeamOptic< Drift >
void	operator() (ImpactXParticleContainer &pc, int step, int period)

void	operator() (ImpactXParticleContainer::iterator &pti, RefPart &AMREX_RESTRICT ref_part)

Public Member Functions inherited from impactx::elements::mixin::LinearTransport< Drift >
	LinearTransport ()=default

	LinearTransport (LinearTransport const &)=default

	LinearTransport (LinearTransport &&)=default

LinearTransport &	operator= (LinearTransport const &)=default

LinearTransport &	operator= (LinearTransport &&rhs)=default

	~LinearTransport ()=default

AMREX_GPU_HOST AMREX_FORCE_INLINE void	operator() (Map6x6 &AMREX_RESTRICT cm, RefPart const &AMREX_RESTRICT ref) const

Public Member Functions inherited from impactx::elements::mixin::Thick
	Thick (amrex::ParticleReal ds, int nslice)

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	nslice () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	ds () const

Public Member Functions inherited from impactx::elements::mixin::Alignment
	Alignment (amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree)

	Alignment ()=default

	Alignment (Alignment const &)=default

Alignment &	operator= (Alignment const &)=default

	Alignment (Alignment &&)=default

Alignment &	operator= (Alignment &&rhs)=default

	~Alignment ()=default

void	compute_constants (RefPart const &refpart)

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_in (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_out (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dx () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dy () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	rotation () const

Public Member Functions inherited from impactx::elements::mixin::PipeAperture
	PipeAperture (amrex::ParticleReal aperture_x, amrex::ParticleReal aperture_y)

	PipeAperture ()=default

	PipeAperture (PipeAperture const &)=default

PipeAperture &	operator= (PipeAperture const &)=default

	PipeAperture (PipeAperture &&)=default

PipeAperture &	operator= (PipeAperture &&rhs)=default

	~PipeAperture ()=default

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	apply_aperture (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_IdCpu &AMREX_RESTRICT idcpu) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	aperture_x () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	aperture_y () const

Public Member Functions inherited from impactx::elements::mixin::NoFinalize
void	finalize ()

Static Public Attributes
static constexpr auto	type = "Drift"

Static Public Attributes inherited from impactx::elements::mixin::Alignment
static constexpr amrex::ParticleReal	degree2rad = ablastr::constant::math::pi / 180.0

Static Public Attributes inherited from amrex::simd::Vectorized< amrex::simd::native_simd_size_particlereal >
static constexpr int	simd_width

Private Attributes
amrex::ParticleReal	m_slice_ds

amrex::ParticleReal	m_betgam2
	m_ds / nslice();

amrex::ParticleReal	m_slice_bg
	beta*gamma^2

Additional Inherited Members
Public Attributes inherited from impactx::elements::mixin::Thick
amrex::ParticleReal	m_ds

int	m_nslice
	segment length in m

Public Attributes inherited from impactx::elements::mixin::Alignment
amrex::ParticleReal	m_dx = 0

amrex::ParticleReal	m_dy = 0
	horizontal translation error [m]

amrex::ParticleReal	m_rotation = 0
	vertical translation error [m]

Public Attributes inherited from impactx::elements::mixin::PipeAperture
amrex::ParticleReal	m_inv_aperture_x = 0

amrex::ParticleReal	m_inv_aperture_y = 0
	inverse of the horizontal aperture size [1/m]

Member Typedef Documentation

◆ PType

using impactx::elements::Drift::PType = ImpactXParticleContainer::ParticleType

Constructor & Destructor Documentation

◆ Drift()

impactx::elements::Drift::Drift	(	amrex::ParticleReal	ds,
		amrex::ParticleReal	dx = 0,
		amrex::ParticleReal	dy = 0,
		amrex::ParticleReal	rotation_degree = 0,
		amrex::ParticleReal	aperture_x = 0,
		amrex::ParticleReal	aperture_y = 0,
		int	nslice = 1,
		std::optional< std::string >	name = std::nullopt )

inline

A drift

Parameters

ds	Segment length in m
dx	horizontal translation error in m
dy	vertical translation error in m
rotation_degree	rotation error in the transverse plane [degrees]
aperture_x	horizontal half-aperture in m
aperture_y	vertical half-aperture in m
nslice	number of slices used for the application of space charge
name	a user defined and not necessarily unique name of the element

Member Function Documentation

◆ compute_constants()

void impactx::elements::Drift::compute_constants ( RefPart const & refpart )

inline

Compute and cache the constants for the push.

In particular, used to pre-compute and cache variables that are independent of the individually tracked particle.

Parameters

refpart reference particle

◆ operator()() [1/2]

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::Drift::operator() ( RefPart &AMREX_RESTRICT refpart ) const

inline

This pushes the reference particle.

Parameters

[in,out] refpart reference particle

◆ operator()() [2/2]

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::Drift::operator()	(	T_Real &AMREX_RESTRICT	x,
		T_Real &AMREX_RESTRICT	y,
		T_Real &AMREX_RESTRICT	t,
		T_Real &AMREX_RESTRICT	px,
		T_Real &AMREX_RESTRICT	py,
		T_Real &AMREX_RESTRICT	pt,
		T_IdCpu &AMREX_RESTRICT	idcpu,
		RefPart const &AMREX_RESTRICT	refpart ) const

inline

This is a drift functor, so that a variable of this type can be used like a drift function.

The

See also: compute_constants method must be called before pushing particles through this operator.

Parameters

x	particle position in x
y	particle position in y
t	particle position in t
px	particle momentum in x
py	particle momentum in y
pt	particle momentum in t
idcpu	particle global index
refpart	reference particle (unused)

◆ transport_map()

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6 impactx::elements::Drift::transport_map ( RefPart const &AMREX_RESTRICT refpart ) const

inline

This function returns the linear transport map.

Returns: 6x6 transport matrix

Member Data Documentation

◆ m_betgam2

amrex::ParticleReal impactx::elements::Drift::m_betgam2

private

m_ds / nslice();

◆ m_slice_bg

amrex::ParticleReal impactx::elements::Drift::m_slice_bg

private

beta*gamma^2

◆ m_slice_ds

amrex::ParticleReal impactx::elements::Drift::m_slice_ds

private

◆ type

auto impactx::elements::Drift::type = "Drift"

staticconstexpr

The documentation for this struct was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/impactx/checkouts/1182/src/elements/Drift.H
