#include <LinearMap.H>

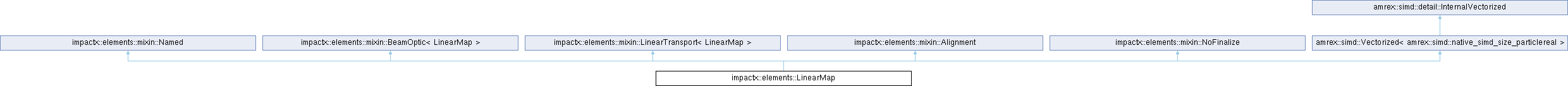

Inheritance diagram for impactx::elements::LinearMap:

Public Types
using	PType = ImpactXParticleContainer::ParticleType

Public Member Functions
	LinearMap (Map6x6 const &R, amrex::ParticleReal ds=0, amrex::ParticleReal dx=0, amrex::ParticleReal dy=0, amrex::ParticleReal rotation_degree=0, std::optional< std::string > name=std::nullopt)

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT t, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py, T_Real &AMREX_RESTRICT pt, T_IdCpu &AMREX_RESTRICT idcpu, RefPart const &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (RefPart &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	nslice () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	ds () const

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6	transport_map (RefPart const &AMREX_RESTRICT refpart) const

Public Member Functions inherited from impactx::elements::mixin::Named
AMREX_GPU_HOST void	set_name (std::string const &new_name)

AMREX_GPU_HOST	Named (std::optional< std::string > name)

AMREX_GPU_HOST_DEVICE	~Named ()

AMREX_GPU_HOST	Named (Named const &other)

AMREX_GPU_HOST Named &	operator= (Named const &other)

AMREX_GPU_HOST_DEVICE	Named (Named &&other) noexcept

AMREX_GPU_HOST_DEVICE Named &	operator= (Named &&other) noexcept

AMREX_FORCE_INLINE std::string	name () const

AMREX_FORCE_INLINE bool	has_name () const

Public Member Functions inherited from impactx::elements::mixin::BeamOptic< LinearMap >
void	operator() (ImpactXParticleContainer &pc, int step, int period)

void	operator() (ImpactXParticleContainer::iterator &pti, RefPart &AMREX_RESTRICT ref_part)

Public Member Functions inherited from impactx::elements::mixin::LinearTransport< LinearMap >
	LinearTransport ()=default

	LinearTransport (LinearTransport const &)=default

	LinearTransport (LinearTransport &&)=default

LinearTransport &	operator= (LinearTransport const &)=default

LinearTransport &	operator= (LinearTransport &&rhs)=default

	~LinearTransport ()=default

AMREX_GPU_HOST AMREX_FORCE_INLINE void	operator() (Map6x6 &AMREX_RESTRICT cm, RefPart const &AMREX_RESTRICT ref) const

Public Member Functions inherited from impactx::elements::mixin::Alignment
	Alignment (amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree)

	Alignment ()=default

	Alignment (Alignment const &)=default

Alignment &	operator= (Alignment const &)=default

	Alignment (Alignment &&)=default

Alignment &	operator= (Alignment &&rhs)=default

	~Alignment ()=default

void	compute_constants (RefPart const &refpart)

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_in (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_out (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dx () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dy () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	rotation () const

Public Member Functions inherited from impactx::elements::mixin::NoFinalize
void	finalize ()

Public Attributes
Map6x6	m_transport_map

amrex::ParticleReal	m_ds

Public Attributes inherited from impactx::elements::mixin::Alignment
amrex::ParticleReal	m_dx = 0

amrex::ParticleReal	m_dy = 0
	horizontal translation error [m]

amrex::ParticleReal	m_rotation = 0
	vertical translation error [m]

Static Public Attributes
static constexpr auto	type = "LinearMap"

Static Public Attributes inherited from impactx::elements::mixin::Alignment
static constexpr amrex::ParticleReal	degree2rad = ablastr::constant::math::pi / 180.0

Static Public Attributes inherited from amrex::simd::Vectorized< amrex::simd::native_simd_size_particlereal >
static constexpr int	simd_width

Member Typedef Documentation

◆ PType

using impactx::elements::LinearMap::PType = ImpactXParticleContainer::ParticleType

Constructor & Destructor Documentation

◆ LinearMap()

impactx::elements::LinearMap::LinearMap	(	Map6x6 const &	R,
		amrex::ParticleReal	ds = 0,
		amrex::ParticleReal	dx = 0,
		amrex::ParticleReal	dy = 0,
		amrex::ParticleReal	rotation_degree = 0,
		std::optional< std::string >	name = std::nullopt )

inline

A thin element that applies a user-provided linear transport map R to the 6-vector of phase space coordinates (x,px,y,py,t,pt). Thus x_final = R(1,1)*x + R(1,2)*px + R(1,3)*y + ..., px_final = R(2,1)*x + R(2,2)*px + R(2,3)*y + ..., etc.

Parameters

R	user-provided transport map
ds	Segment length in m
dx	horizontal translation error in m
dy	vertical translation error in m
rotation_degree	rotation error in the transverse plane [degrees]
name	a user defined and not necessarily unique name of the element

Member Function Documentation

◆ ds()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::LinearMap::ds ( ) const

inline

Return the segment length

Returns: by default zero, but users can set a corresponding ds for bookkeeping

◆ nslice()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int impactx::elements::LinearMap::nslice ( ) const

inline

Number of slices used for the application of space charge

Returns: one, because we do not support slicing of this element

◆ operator()() [1/2]

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::LinearMap::operator() ( RefPart &AMREX_RESTRICT refpart ) const

inline

This pushes the reference particle.

Parameters

[in,out] refpart reference particle

◆ operator()() [2/2]

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::LinearMap::operator()	(	T_Real &AMREX_RESTRICT	x,
		T_Real &AMREX_RESTRICT	y,
		T_Real &AMREX_RESTRICT	t,
		T_Real &AMREX_RESTRICT	px,
		T_Real &AMREX_RESTRICT	py,
		T_Real &AMREX_RESTRICT	pt,
		T_IdCpu &AMREX_RESTRICT	idcpu,
		RefPart const &AMREX_RESTRICT	refpart ) const

inline

This is a LinearMap functor, so that a variable of this type can be used like a LinearMap function.

Parameters

x	particle position in x
y	particle position in y
t	particle position in t (unused)
px	particle momentum in x
py	particle momentum in y
pt	particle momentum in t (unused)
idcpu	particle global index
refpart	reference particle (unused)

◆ transport_map()

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6 impactx::elements::LinearMap::transport_map ( RefPart const &AMREX_RESTRICT refpart ) const

inline

This function returns the linear transport map.

Parameters

[in] refpart reference particle

Returns: 6x6 transport matrix

Member Data Documentation

◆ m_ds

amrex::ParticleReal impactx::elements::LinearMap::m_ds

◆ m_transport_map

Map6x6 impactx::elements::LinearMap::m_transport_map

◆ type

auto impactx::elements::LinearMap::type = "LinearMap"

staticconstexpr

The documentation for this struct was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/impactx/checkouts/1182/src/elements/LinearMap.H
