#include <QuadEdge.H>

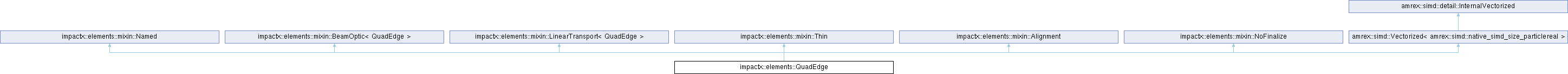

Inheritance diagram for impactx::elements::QuadEdge:

Public Types
enum	Location { entry = 1 , exit = -1 }

using	PType = ImpactXParticleContainer::ParticleType

Public Member Functions
	QuadEdge (amrex::ParticleReal k, int unit, Location flag, amrex::ParticleReal dx=0, amrex::ParticleReal dy=0, amrex::ParticleReal rotation_degree=0, std::optional< std::string > name=std::nullopt)

void	compute_constants (RefPart const &refpart)

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT t, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py, T_Real &AMREX_RESTRICT pt, T_IdCpu &AMREX_RESTRICT idcpu, RefPart const &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6	transport_map (RefPart const &AMREX_RESTRICT refpart) const

Public Member Functions inherited from impactx::elements::mixin::Named
AMREX_GPU_HOST void	set_name (std::string const &new_name)

AMREX_GPU_HOST	Named (std::optional< std::string > name)

AMREX_GPU_HOST_DEVICE	~Named ()

AMREX_GPU_HOST	Named (Named const &other)

AMREX_GPU_HOST Named &	operator= (Named const &other)

AMREX_GPU_HOST_DEVICE	Named (Named &&other) noexcept

AMREX_GPU_HOST_DEVICE Named &	operator= (Named &&other) noexcept

AMREX_FORCE_INLINE std::string	name () const

AMREX_FORCE_INLINE bool	has_name () const

Public Member Functions inherited from impactx::elements::mixin::BeamOptic< QuadEdge >
void	operator() (ImpactXParticleContainer &pc, int step, int period)

void	operator() (ImpactXParticleContainer::iterator &pti, RefPart &AMREX_RESTRICT ref_part)

Public Member Functions inherited from impactx::elements::mixin::LinearTransport< QuadEdge >
	LinearTransport ()=default

	LinearTransport (LinearTransport const &)=default

	LinearTransport (LinearTransport &&)=default

LinearTransport &	operator= (LinearTransport const &)=default

LinearTransport &	operator= (LinearTransport &&rhs)=default

	~LinearTransport ()=default

AMREX_GPU_HOST AMREX_FORCE_INLINE void	operator() (Map6x6 &AMREX_RESTRICT cm, RefPart const &AMREX_RESTRICT ref) const

Public Member Functions inherited from impactx::elements::mixin::Thin
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	operator() (RefPart &AMREX_RESTRICT refpart) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	nslice () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	ds () const

Public Member Functions inherited from impactx::elements::mixin::Alignment
	Alignment (amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree)

	Alignment ()=default

	Alignment (Alignment const &)=default

Alignment &	operator= (Alignment const &)=default

	Alignment (Alignment &&)=default

Alignment &	operator= (Alignment &&rhs)=default

	~Alignment ()=default

void	compute_constants (RefPart const &refpart)

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_in (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_out (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dx () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dy () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	rotation () const

Public Member Functions inherited from impactx::elements::mixin::NoFinalize
void	finalize ()

Public Attributes
amrex::ParticleReal	m_k

int	m_unit
	quadrupole focusing strength

Location	m_flag
	unit specification for quad strength

Public Attributes inherited from impactx::elements::mixin::Alignment
amrex::ParticleReal	m_dx = 0

amrex::ParticleReal	m_dy = 0
	horizontal translation error [m]

amrex::ParticleReal	m_rotation = 0
	vertical translation error [m]

Static Public Attributes
static constexpr auto	type = "QuadEdge"

Static Public Attributes inherited from impactx::elements::mixin::Alignment
static constexpr amrex::ParticleReal	degree2rad = ablastr::constant::math::pi / 180.0

Static Public Attributes inherited from amrex::simd::Vectorized< amrex::simd::native_simd_size_particlereal >
static constexpr int	simd_width

Private Attributes
amrex::ParticleReal	m_g
	+1 for entry, or -1 for exit

amrex::ParticleReal	m_a

amrex::ParticleReal	m_beta

amrex::ParticleReal	m_gamma

Member Typedef Documentation

◆ PType

using impactx::elements::QuadEdge::PType = ImpactXParticleContainer::ParticleType

Member Enumeration Documentation

◆ Location

enum impactx::elements::QuadEdge::Location

Enumerator
entry
exit	for leading (entry) fringe field

Constructor & Destructor Documentation

◆ QuadEdge()

impactx::elements::QuadEdge::QuadEdge	(	amrex::ParticleReal	k,
		int	unit,
		Location	flag,
		amrex::ParticleReal	dx = 0,
		amrex::ParticleReal	dy = 0,
		amrex::ParticleReal	rotation_degree = 0,
		std::optional< std::string >	name = std::nullopt )

inline

Quadrupole entry or exit fringe field effects.

This is a third-order nonlinear symplectic map, representing model-independent terms that contribute in the hard-edge limit. Chromatic energy dependence is included. We use an explicit (symplectification) of the map generated by eq (28) of:

References: E. Forest and J. Milutinovic, Nucl. Instrum. and Methods in Phys. Res. A 269, 474-482 (1988), https://doi.org/10.1016/0168-9002(88)90123-4

Parameters

k	Quadrupole strength in m^(-2) (MADX convention) = (gradient in T/m) / (rigidity in T-m) OR Quadrupole strength in T/m (MaryLie convention) k > 0 horizontal focusing k < 0 horizontal defocusing
unit	Unit specification unit = 0 MADX convention (default) unit = 1 MaryLie convention
flag	Flag specifying entry or exit location
dx	horizontal translation error in m
dy	vertical translation error in m
rotation_degree	rotation error in the transverse plane [degrees]
name	a user defined and not necessarily unique name of the element

Member Function Documentation

◆ compute_constants()

void impactx::elements::QuadEdge::compute_constants ( RefPart const & refpart )

inline

Compute and cache the constants for the push.

In particular, used to pre-compute and cache variables that are independent of the individually tracked particle.

Parameters

refpart reference particle

◆ operator()()

template<typename T_Real = amrex::ParticleReal, typename T_IdCpu = uint64_t>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::QuadEdge::operator()	(	T_Real &AMREX_RESTRICT	x,
		T_Real &AMREX_RESTRICT	y,
		T_Real &AMREX_RESTRICT	t,
		T_Real &AMREX_RESTRICT	px,
		T_Real &AMREX_RESTRICT	py,
		T_Real &AMREX_RESTRICT	pt,
		T_IdCpu &AMREX_RESTRICT	idcpu,
		RefPart const &AMREX_RESTRICT	refpart ) const

inline

This is a quadedge functor, so that a variable of this type can be used like a quadedge function.

The

See also: compute_constants method must be called before pushing particles through this operator.

Parameters

x	particle position in x
y	particle position in y
t	particle position in t
px	particle momentum in x
py	particle momentum in y
pt	particle momentum in t (unchanged)
idcpu	particle global index (unused)
refpart	reference particle (unused)

◆ transport_map()

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6 impactx::elements::QuadEdge::transport_map ( RefPart const &AMREX_RESTRICT refpart ) const

inline

This function returns the linear transport map.

Parameters

[in] refpart reference particle

Returns: 6x6 transport matrix

Member Data Documentation

◆ m_a

amrex::ParticleReal impactx::elements::QuadEdge::m_a

private

◆ m_beta

amrex::ParticleReal impactx::elements::QuadEdge::m_beta

private

◆ m_flag

Location impactx::elements::QuadEdge::m_flag

unit specification for quad strength

◆ m_g

amrex::ParticleReal impactx::elements::QuadEdge::m_g

private

+1 for entry, or -1 for exit

◆ m_gamma

amrex::ParticleReal impactx::elements::QuadEdge::m_gamma

private

◆ m_k

amrex::ParticleReal impactx::elements::QuadEdge::m_k

◆ m_unit

int impactx::elements::QuadEdge::m_unit

quadrupole focusing strength

◆ type

auto impactx::elements::QuadEdge::type = "QuadEdge"

staticconstexpr
